F300 Multifunctional Common Rail Injector Tester (Piezo & Solenoid) – Precision Electrical Diagnostic & Driver Analyzer

Professional Diagnostic Overview & Application

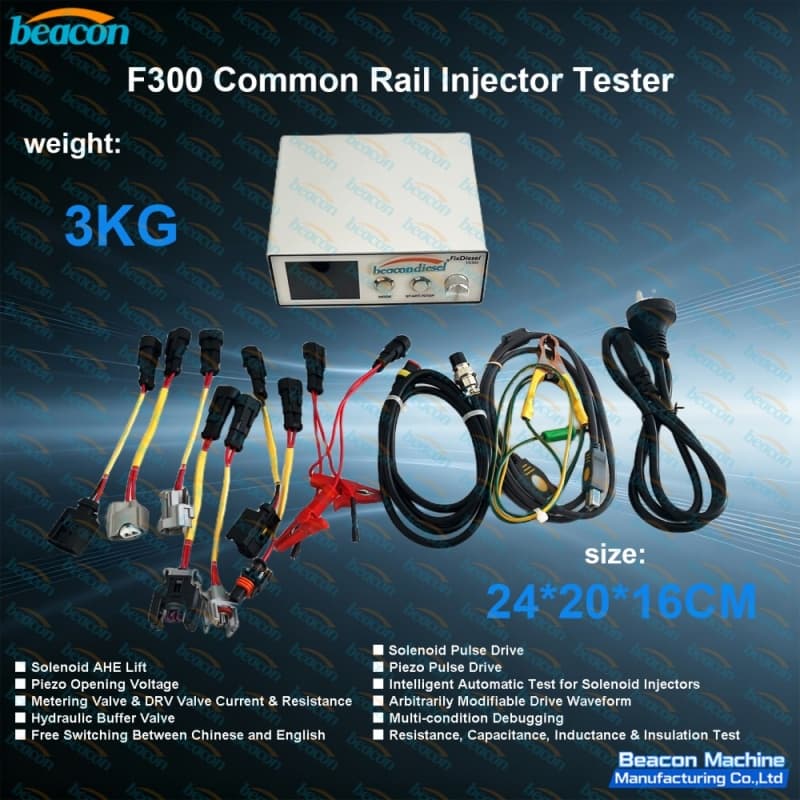

The F300 Common Rail Injector Tester (also engineered under the FixDiesel FD300 series) by BEACON MACHINE is a portable, ultra-precise 3kg electronic diagnostic controller specifically designed for comprehensive testing, bench-activation, and electrical parameter validation of modern high-pressure diesel injection systems. Unlike entry-level pulse generators, the F300 combines high-voltage pulse driving with a lab-grade digital RLC meter, insulation megohmmeter, and dynamic valve-lift analyzer.

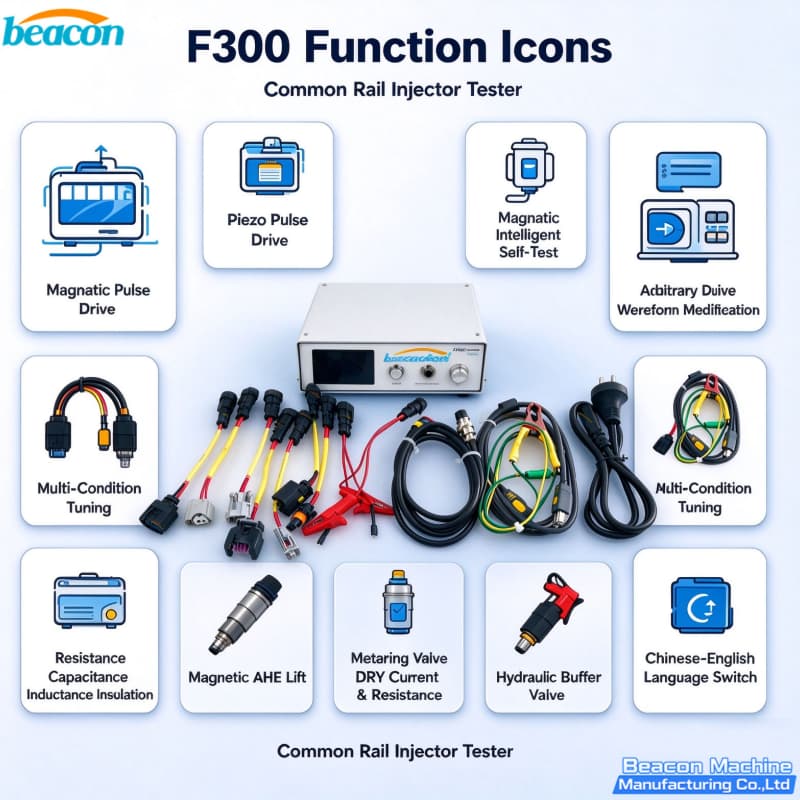

Engineered to handle both standard electromagnetic solenoid injectors and delicate piezoelectric crystal injectors, the F300 delivers comprehensive diagnostics: measuring resistance (Ω), capacitance (μF), inductance (mH), and high-voltage insulation resistance (MΩ), alongside dynamic AHE armature lift, piezo opening voltage, metering valve (DRV / IMV / SCV / M-Prop) dry current, and hydraulic buffer valve responses. The system features an arbitrary drive waveform modification engine and multi-condition debugging profiles (Pilot, Idle, Medium Load, Full Power).

The F300 supports premier global fuel injection components: Bosch (CRI 1.0, 2.0, 2.2, CRIN 1, 2, 3, 4, Piezo 0445115/116/117 series, Part numbers: 0445110376, 0445120236, 0445120123), Delphi (Euro 3, 4, 5, 6, EMBR, DFI 1.5, Part numbers: 28231014, 28229873), Denso (G2, G3, G4, Piezo, Part numbers: 095000-5050, 095000-6353, 23670-0E020), and Siemens / Continental VDO (A2C59511601, BK2Q-9K546-AG). It is universally applied across light commercial vehicles, heavy-duty haulers, and heavy industrial machinery: Cummins (ISF 2.8, 3.8, 6BT, QSB, ISLe), Caterpillar (C4.4, C6.6, C7.1), VAG (1.6 / 2.0 / 3.0 TDI), Mercedes-Benz CDI (OM642, OM651), Ford Transit TDCi, Toyota Hilux/Prado D-4D, Komatsu PC200/PC300, and KamAZ Euro-4/5. The F300 swiftly eliminates critical fault symptoms including engine misfiring, rough idling, hard starting, black/grey exhaust smoke, uncontrolled fuel rail pressure fluctuation, and ECU fault codes (P0200, P0201-P0206) caused by shorted coil windings, piezo crystal degradation, or armature sticking.

Technical & Service Advantages of BEACON MACHINE F300

• ✔            All-in-One Dual Piezo & Solenoid Drive Architecture:            Integrates independent hardware driving circuits. Features an automatic high-voltage boost module (up to 150V) specifically designed for Siemens VDO and Bosch Piezo crystals, alongside adjustable pulse-width PWM driving for high/low resistance solenoid injectors without external booster boxes.

• ✔            Comprehensive Electrical Parameter Analysis (RLC & Insulation):            Acts as a dedicated precision digital meter directly measuring coil Resistance (Ω), Inductance (mH), crystal Capacitance (μF), and Insulation Resistance to ground (500V test). Quickly uncovers internal short circuits, moisture ingress, or crystal layer detachment before mounting to test benches.

• ✔            Dynamic AHE Lift & Arbitrary Waveform Customization:            Supports magnetic AHE armature stroke measurement and real-time drive waveform modifications. Technicians can adjust injection frequency, pulse width, and current curve parameters to simulate factory-specific pre-injection, idle, and full-load fuel delivery accurately.

• ✔            DRV Valve & Pump Metering Valve Test Capability:            Expands workshop versatility by testing fuel rail pressure control valves (DRV), pressure regulators, and high-pressure fuel pump metering units (IMV, SCV, ZME, M-Prop), measuring coil resistance and operating dry current to diagnose rail pressure drops and unstable fuel delivery.

• ✔            Official BEACON MACHINE Factory Warranty & Global Support:            Backed by a 12-month complete manufacturer warranty, bilingual English-Chinese intuitive interface, a complete set of heavy-duty shielded vehicle-grade harness adapters in the package, and direct technical service support for diesel workshops worldwide.
